     Week 1 Aims:

       In the first lab session, we recieved some parts of our components. It included:an Arduino mega board, a brushless dc motor, a LCD shield, pins, a A to B cable. After we check the component and connect the shield to and the arduino board to the computer. We realized that we there is so many essential components we need but we dont recieve it for some reason cause some of them are out of stock when school order it. We check all the components we needed and upload them again. With these existing hardware components, we could not make progress on the circuits. So we aim to finish the design of 3D printing on some coomponents today.



  Week 1 Progress

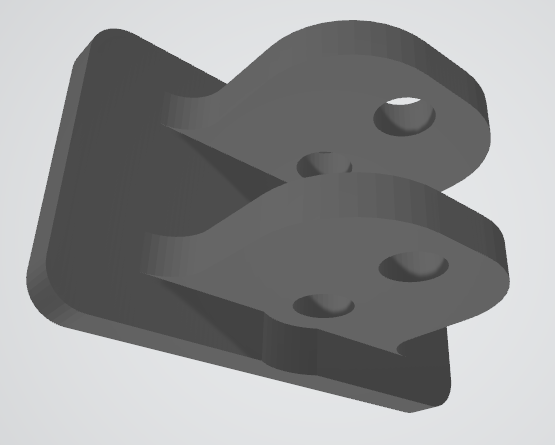

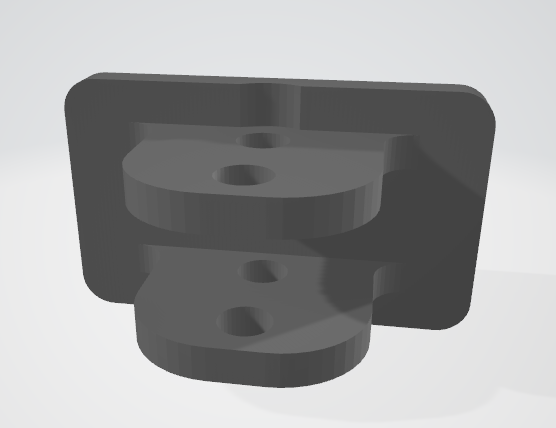

         For the day of session, we finished the design of 3D print of the small parts: friction adaptor , load cell support , pi support and yellow flywheel.







 Week 1 challenges
        We need to ensure that all components will be there next week cause there is no much time for us. When we get all the components next week, we will build the circuit and test the sensors.
