Week4

 Week 4

February 22, 2025


Progress:

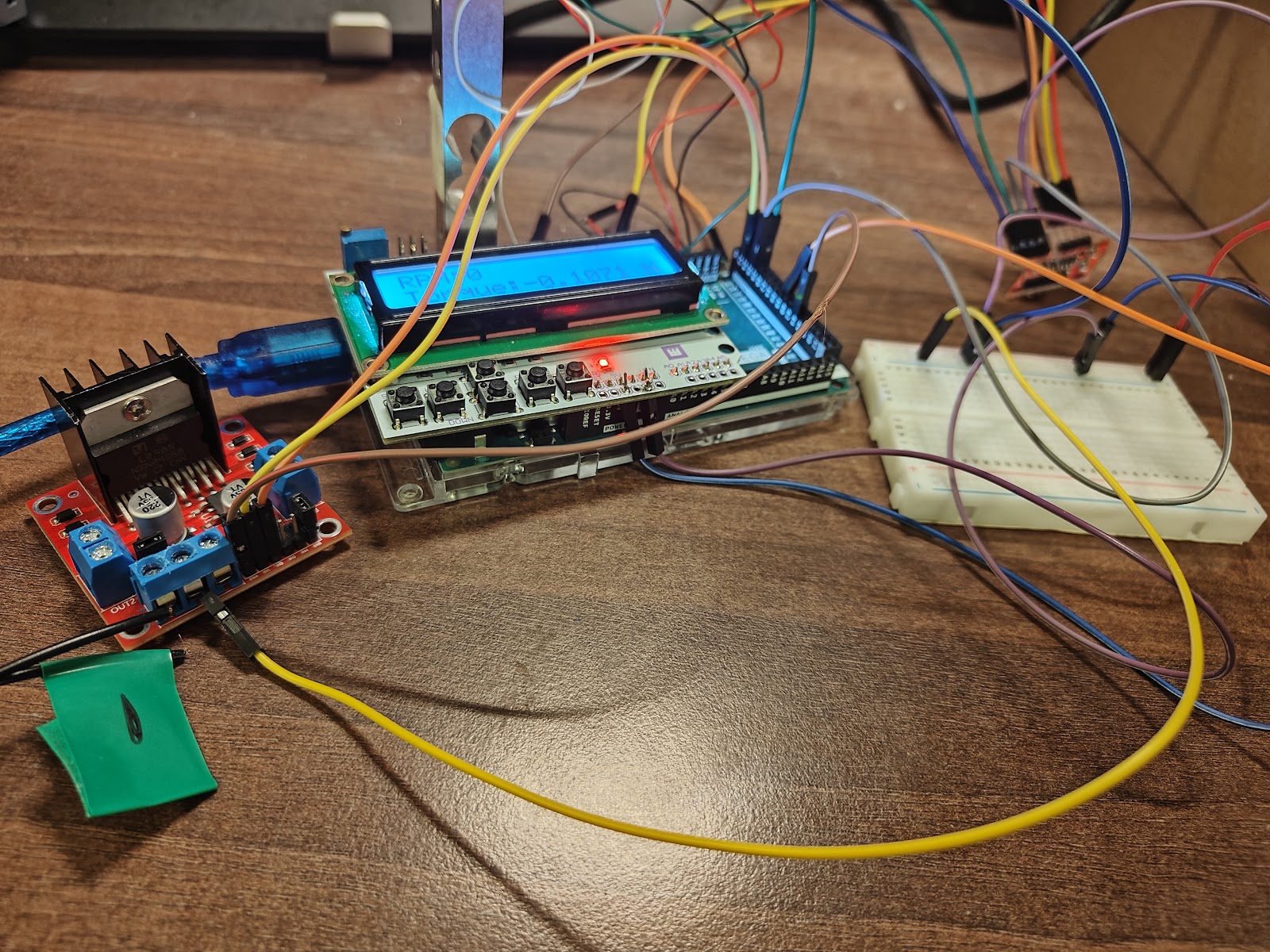

      Finish assembling the whole system. Codes are improved, RPM values are shown correctly. But the wire on the load cell is broken accidentally， we connect it by soldering it but it is of none use.
